About This Item

Item Description:

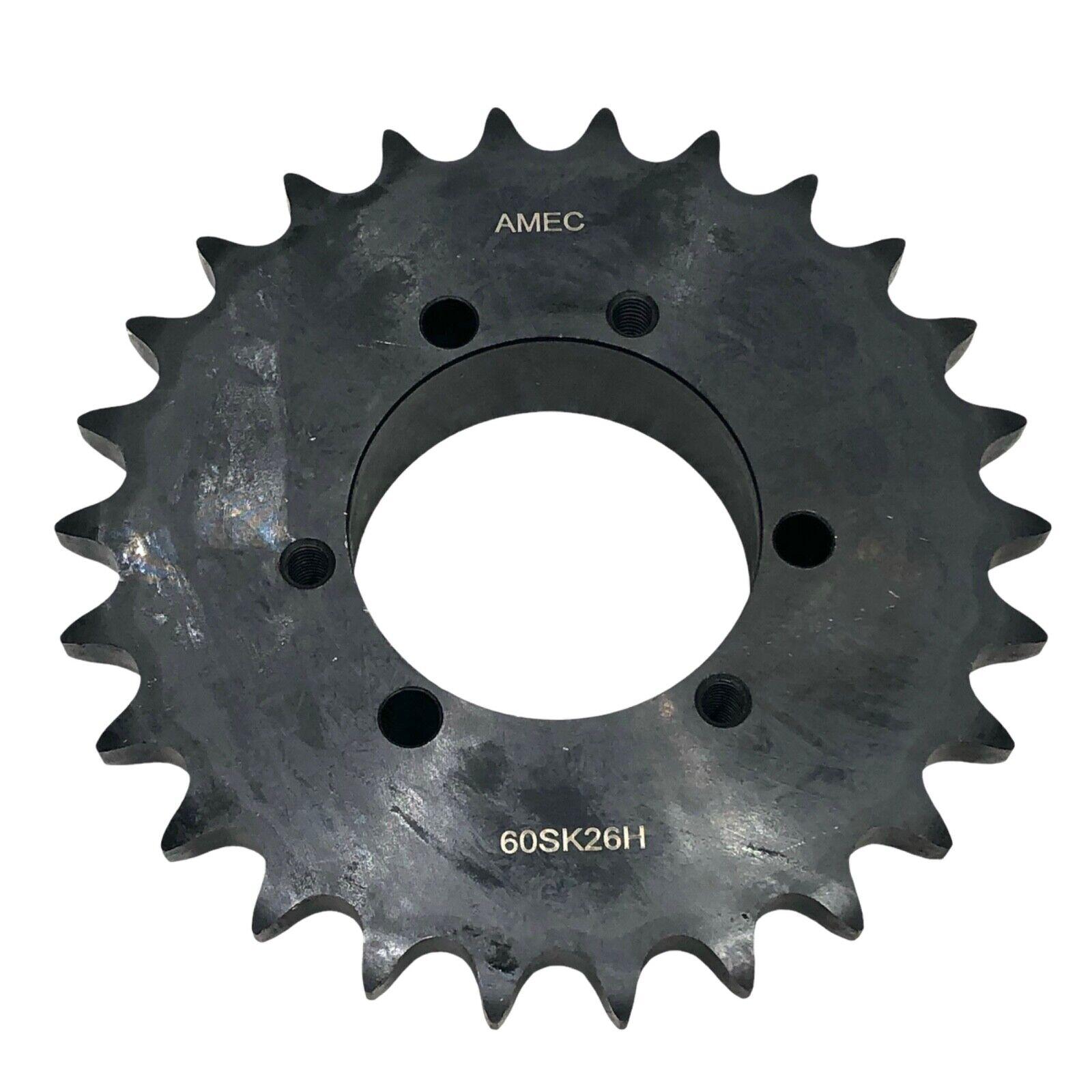

AMEC 60SK26H Bushed Sprocket QD For #60 Roller Chain 3/4" Pitch 1/2" Tooth Width







Product Type

Bushed Roller Chain Sprockets



Number Of Mounting Screws And Location

3 at 120 °



Bore Type

Bushed



Chain Number & Pitch

60 / 3/4 in



Bushing Bore Range

1/2 to 2-5/8 in



Number Of Teeth

26



Bushing Type

QD Bushing



Bushing Size

SK



Outside Diameter

6.6270 in



Number Of Strands Across

1



Caliper Diameter

5.7532 in



Chain / Sprocket Type

Standard Roller Chain



Material

Steel



Chain Roller Diameter

0.4690 in



Chain Roller Width

0.5000 in



Hardened Teeth

Hardened Teeth



Hub Diameter

3-7/8 in



Hub Outside Diameter

4.0000 in



Hub Projection

0.8125 in



Length Through Bore

1.2500 in



Manufacturer Catalog

Click here



Manufacturer Upc Number

697950042060



Mounting Screw Size

5/16-18 UNC



Number Of Mounting Screws And Loc

3 at 120 °



Number Of Hubs

1



Pitch Diameter

6.4603 in



Pitch Type

Single



Storage Dimension Height

1.2500 in



Storage Dimension Length

6.6270 in



Storage Dimension Width

6.6270 in



Surface Treatment

Protective Coating



Tooth Thickness

0.4590 in



Tooth Width

0.4590 in
