About This Item

Item Description:

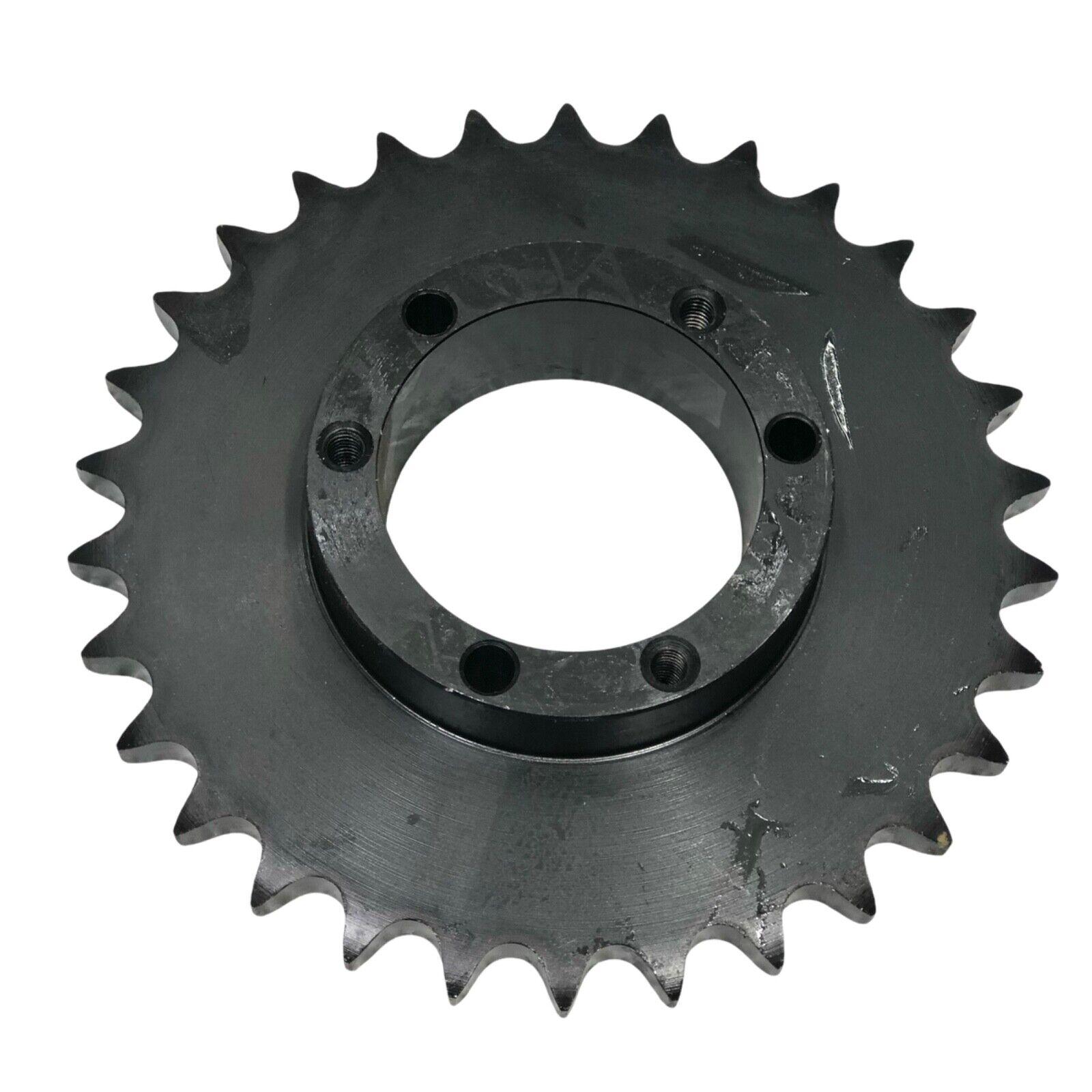

Amec 60SK30H QD Bushed Sprocket For #60 Roller Chain 3/4" Pitch 1/2" Tooth Width



SpecificationsHub Projection0.81 inBore TypeBushedNo. of Strands Across1Single Strand Tooth Thickness0.459 inInch/MetricInchOutside Dia. [Min]7.5860 inTypeBTooth Width0.459 inMartin No.60SK30HOverall Length Less ThreadsN/AScrew Size5/16-18 UNCSprocket StyleBO.D.7.586 inHub O.D.4 inNo. of Teeth30Bushing Bore [Min]0.5 inOutside Dia.7.5860 inLength Through Bore1.25 inPitch Diameter7.175 inHub Length0.81 inChain No.60Bore Size [Max]2.625 inBushing Bore Size [Max]2.625 inMaterialSteelHardened Teeth1Hub Dia.4 inOverall Length1 1/4 inBore Size [Min]0.5 inWidth Across Teeth0.459 inCaliper Diameter6.7061 inPitch Dia.7.175 inChain Pitch0.750 inBushing SeriesSKBushing TypeQDBushing Bore [Max]2 5/8 in
