About This Item

Item Description:

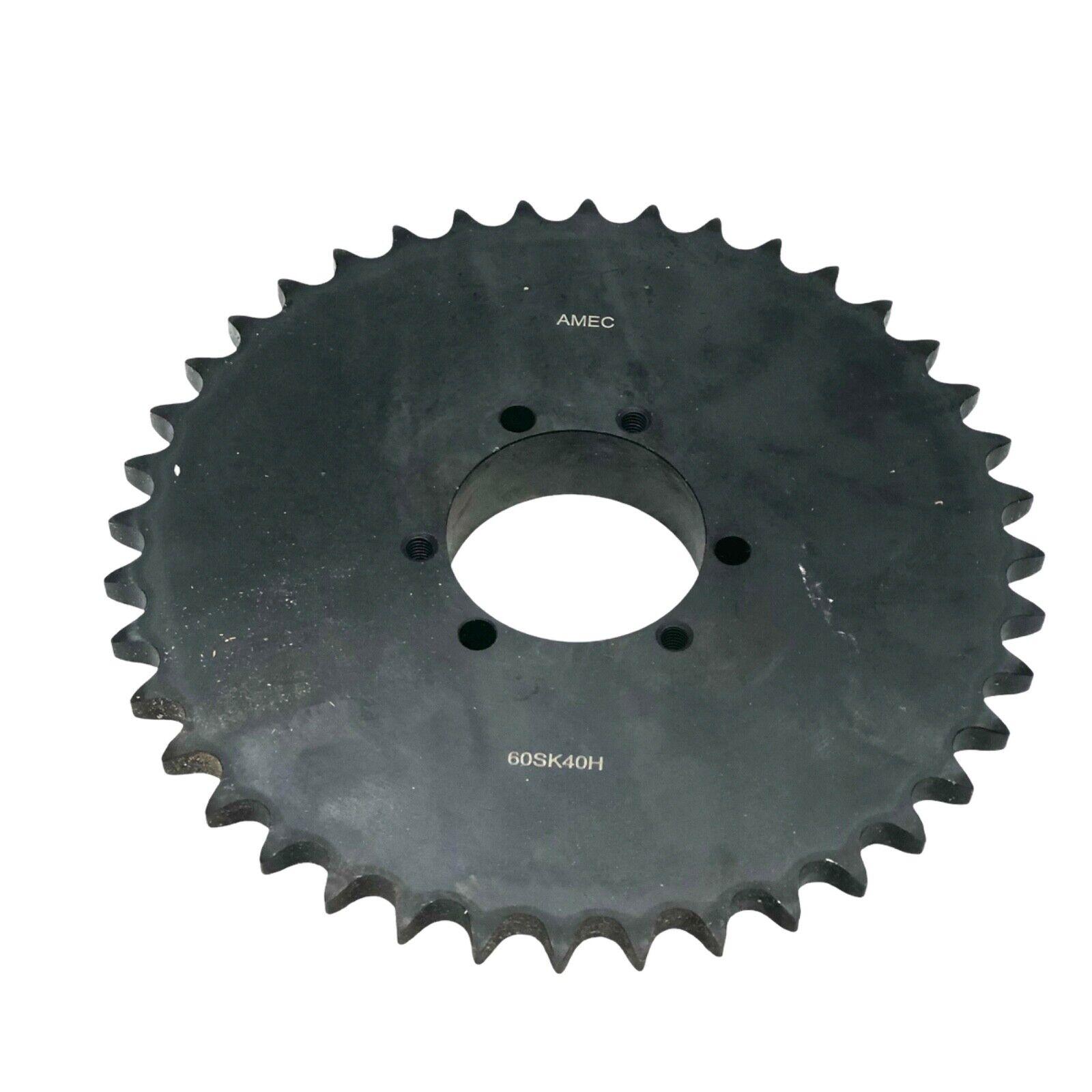

Amec 60SK40H QD Bushed Sprocket For #60 Roller Chain 3/4" Pitch 40 Tooth







SPECIFICATIONS

Product Type

Bushed Roller Chain Sprockets



Bore Type

Bushed



Chain Number & Pitch

60 / 3/4 in



Bushing Bore Range

1/2 to 2-5/8 in



Number Of Teeth

40



Bushing Type

QD Bushing



Bushing Size

SK



CAD Drawing

Click here



Outside Diameter

9.9800 in



Number Of Strands Across

1



Caliper Diameter

9.0901 in



Chain / Sprocket Type

Standard Roller Chain



Material

Steel



Chain Number

60



Hardened Teeth

Non-Hardened Teeth



Hub Diameter

3-7/8 in



Hub Projection

51/64 in



Length Through Bore

1.2500 in



Manufacturer Catalog

Click here



Manufacturer Upc Number

697950017723



Number Of Hubs

1



Pitch Diameter

9.5591 in



Pitch Type

Single



Storage Dimension Height

1.2500 in



Storage Dimension Length

9.9800 in



Storage Dimension Width

9.9800 in



Surface Treatment

Protective Coating



Tooth Width

0.459 in
