Item Description:

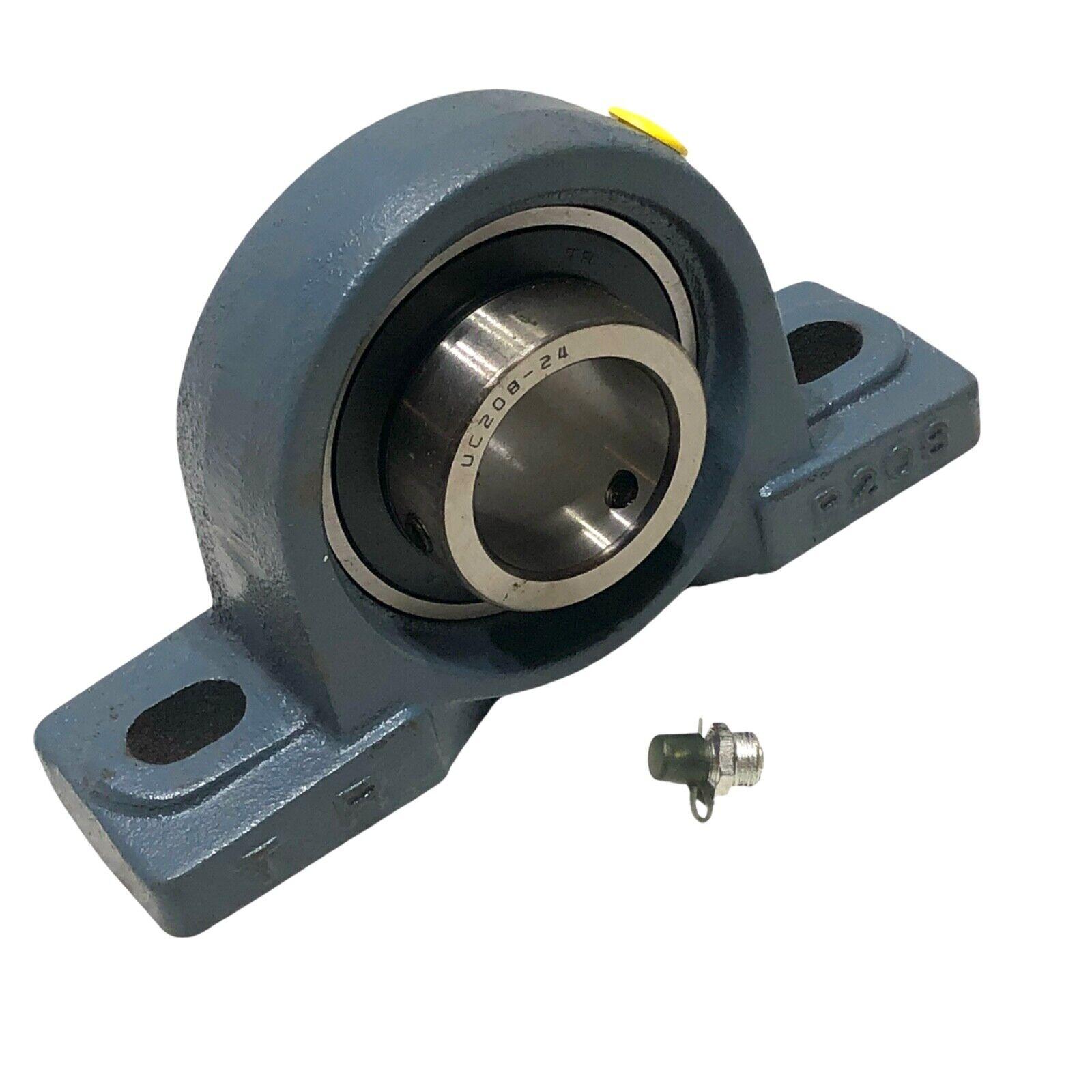

TR UCP208-24 Pillow Block Bearing 1-1/2" Bore Replaces NP-24 P2B-SC-108

Box is a bit beat up from storage  High quality 1-1/2" pillow block bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing. Dimensions:

Bore: 1-1/2"

Bolt hole to bolt hole: 5.354 in. (136mm)

Overall length: 7.25 in. (184mm)

Shaft height: 1.937 in. (49.2mm)

Overall height: 3.858 in. (98mm)

Bolt hole: .669 in. (17mm)INTERCHANGE

AMI: UCP 208-24

Browning: VPS-224

Dodge: P2B-SC-108

Fafnir: RASC-1 1/2

Fafnir: YAS-1 1/2

Link-Belt: P3-U224N

Link-Belt: P3-Y224N

NSK: USP208-24S

NTN: UCP208-108T

Peer: FHSP208-24G

RHP: NP-1 1/2

Sealmaster: NP-24
