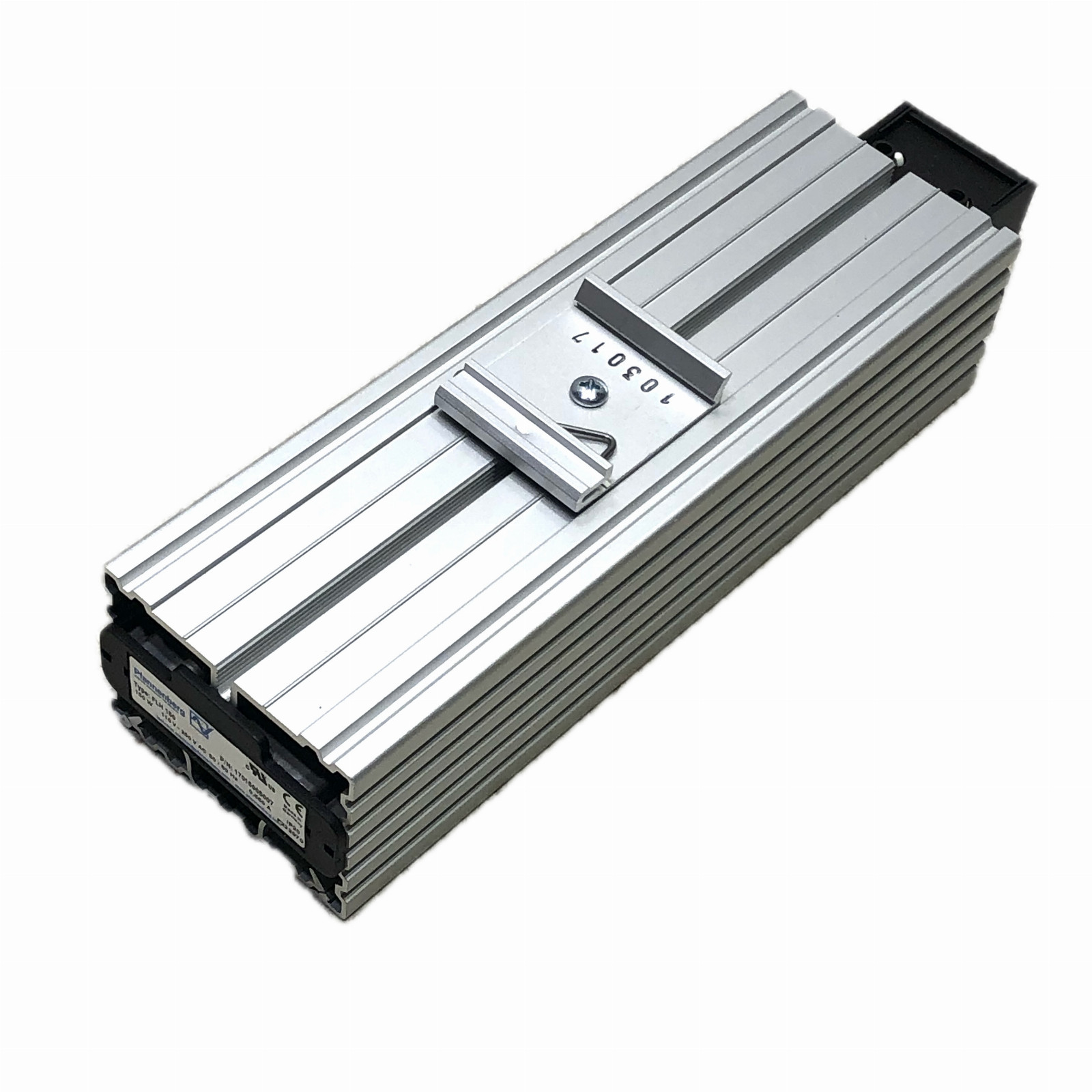

Pfannenberg FLH 150 Fanless Radiant Enclosure Heater 150W, Part# 17015005007, is a NOS Made in Germany industrial heater designed for condensation prevention and frost protection inside electrical enclosures, control panels, and cabinets. This 150 watt fanless heater operates across a wide functional range of 110-250V AC @ 50 | 60 Hz, making the Pfannenberg FLH enclosure heater a versatile solution for cabinet heating applications. The black anodised aluminium profile housing snaps onto 35 mm DIN rail profile bars per EN 60715 and connects via plug terminal connector with a 500 mm connecting cable. With no fan and no thermostat, this Pfannenberg FLH 150 control panel heater provides reliable radiant heat for condensation prevention in demanding industrial settings.
Rated voltage: AC 110 / 250 V (±10 %)
Rated frequency: 50 Hz | 60 Hz (±1 %)
Heating performance: 150 W
Functional range: 110-250V AC @ 50 | 60 Hz
Max. surface temperature: 150 °C
With fan: no
With thermostat: no
Operating temperature: -40 °C ... +70 °C
System of protection: IP20
Housing material: aluminium profile, black anodised
Type of mounting: snap fastening for 35 mm profile bars according to EN 60715
Type of connection: plug terminal connector, connecting cable (500 mm)
