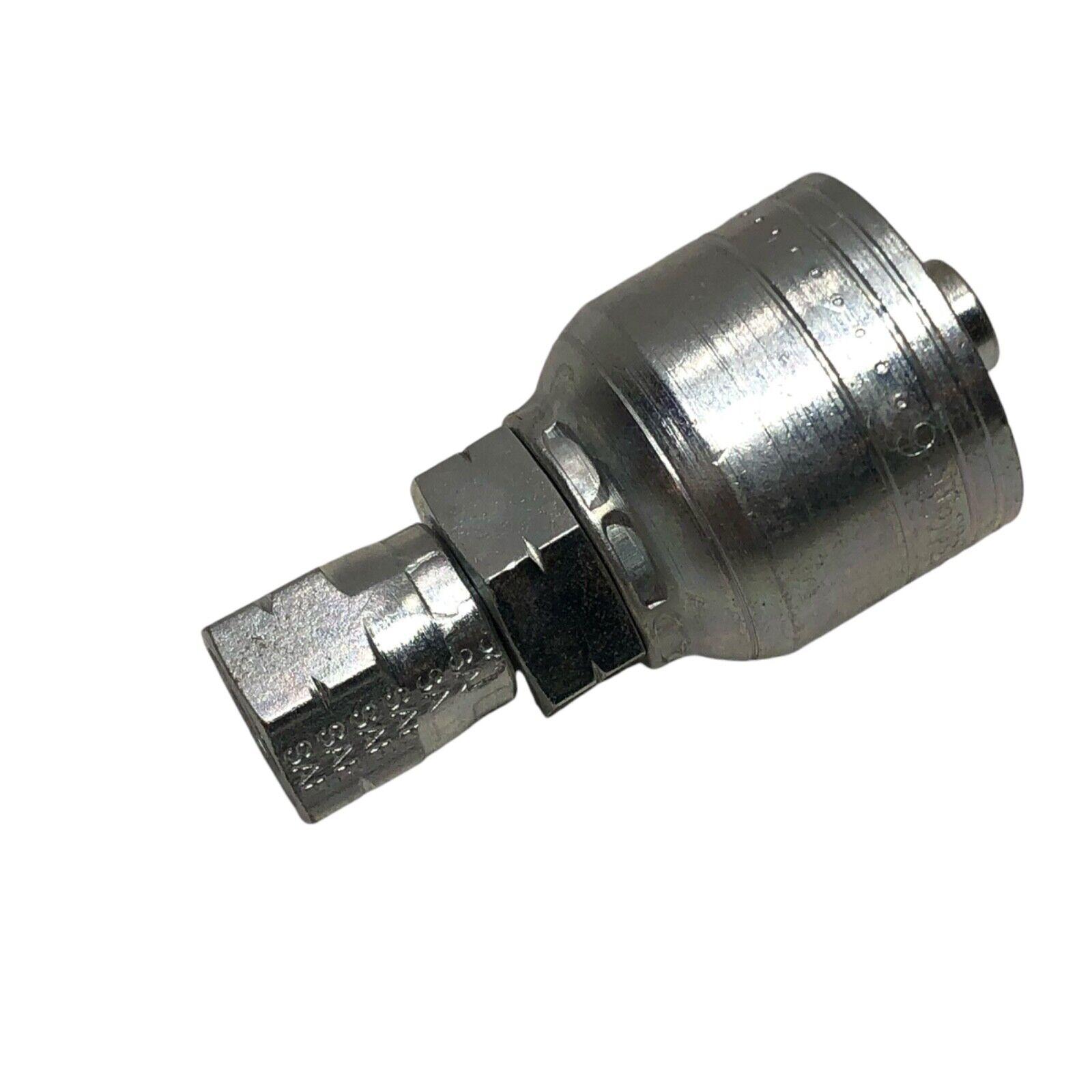

Item Description:
SPECIFICATIONS
Adapter Type
Hose End (perm) 1S/1R
Angle
180 °
Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
Body Material
Carbon Steel
Color
DURA-KOTE
Compatible Hose Series
H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949
Connection 1 Short Name
SAE 45
Connection 2 Short Name
Line/Hose/Tube
Description Keyword
3/8 in 7/16-20 SAE x Line/Hose/Tube
End 1 Style
SAE
End 1 Thread
7/16-20
End 1 Type
SAE 45
End 2 Type
Line/Hose/Tube
End Gender
Female
For Use With
H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949
Height
1.07 in
Hose Cut-Off Factor
1.19 in
Inside Diameter
0.19 in
Length
2.19 in
Manufacturer Catalog Number
06Z-404
Manufacturer Upc Number
639789295644
Outer Diameter
1.07 in
Overall Length
2.19 in
Overall Weight
0.14 lb
Product Types
Hose Fittings
Standards Met
SAE J1176
Width
1.07 in
