Item Description:

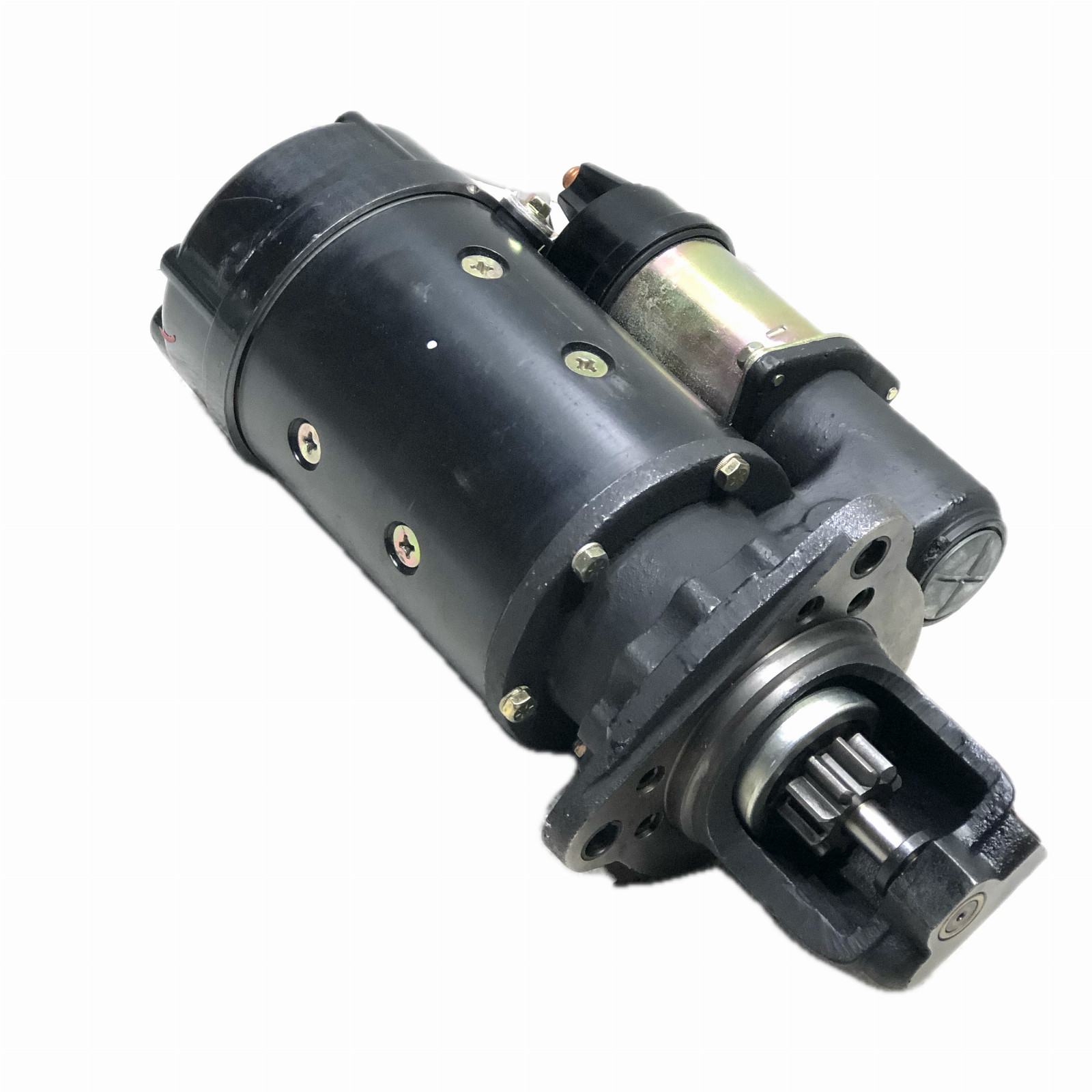

50-193-1 37MT Starter Motor 12V 10T Replaces Delco 323-840 10461058 6348
This listing features a high-quality 50-193-1 Starter Motor, an essential NOS heavy equipment part. This DELCO 50-193-1 starter is a robust remanufactured 12V, 10-tooth unit designed for heavy-duty applications, ensuring dependable engine starting performance for commercial trucks and industrial equipment. It directly replaces Delco 323-840 and Delco-Remy 10461058, offering broad interchangeability for maintenance and repair needs.
Specifications:
- Mfr Part Number: 50-193-1
- Voltage: 12.0V
- Tooth Quantity: 10
- Power Rating: 4.6 kW
- Starter Rotation: Clockwise (CW)
- Mounting Bolt Hole Quantity: 3
- Mounting Type: Flange, SAE 3
- Design: Wound Wire Direct Drive
- Family/Model: 37MT (replaces 41MT type)
- Nose Cone Material: Cast Iron
- Nose Cone Type: Closed Nose
- Solenoid Attached: Yes
- Re-Clockable Flange: Yes
- Over-Crank Protection: No
- Case Grounding: Grounded Case
- Pinion Offset: Yes
- Pinion Pitch: 8/10
- Polarity: Grounded
- Solenoid Position: 308
- Weight: 54.00 LBS
- Country of Origin: Mexico
Interchange Part Numbers:
ACDelco: 323-840
BBB Industries: 6348
CUMMINS: 3604673RX
DELCO REMY REMAN: 10461058
Dixie Electric Ltd: TS-1551
LESTER: 6348, 6398
MIDLAND: RS137001X
MPA XTREME NEW: X76398N
MPA XTREME REMAN: X76398, X76412
Power Select: 50-193, 50-193-1, 6398N-PT
WAI: 50-193, 50-193-1
WILSON: 91-01-4165
World Wide Automotive: 63108
XTREME HD: X76398, X76398N, X76412
Other: 1993767
California Proposition 65: WARNING: This product contains a chemical known to the State of California to cause cancer.
This Item May Interchange With The Following:
323-840 6348 3604673RX 10461058 TS-1551 6398 RS137001X X76398N X76398 X76412 50-193 50-193-1 6398N-PT 91-01-4165 63108 1993767
