Item Description:

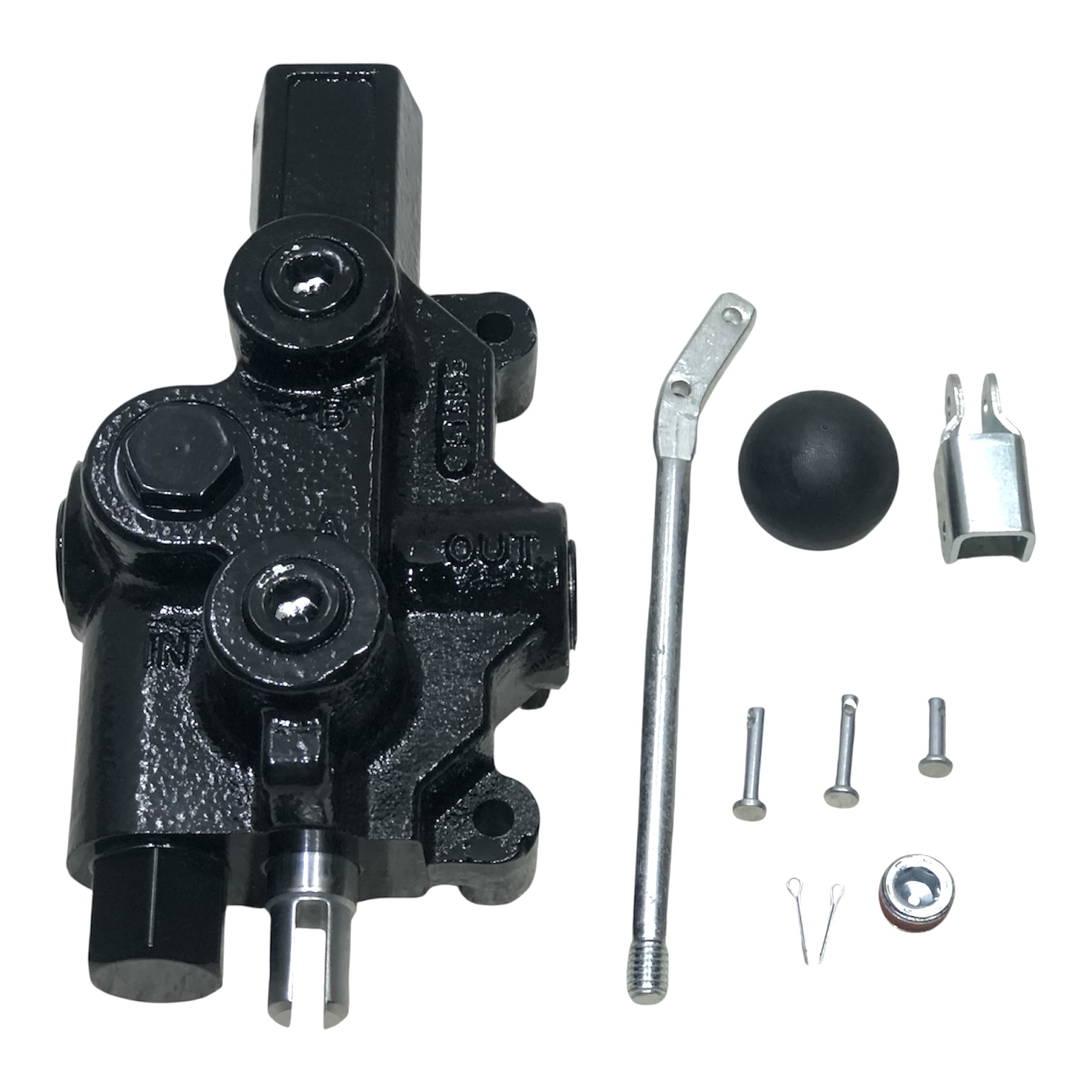

Prince 6W565 Hydraulic Control Valve 4 Way 3 Position
This listing features a genuine Prince 6W565 Hydraulic Control Valve, an essential NOS (New Old Stock) heavy equipment part. This Prince 6W565 directional control valve, also identified by manufacturer part number RD2575T4EDA1 in the Prince RD2500 Series, is a 4-way 3-position spool valve with a tandem center and a single detent-action spool, rated for 12 GPM maximum flow and 3,000 PSI. As a lever operated, manually actuated cast iron valve with NPT inlet, outlet, and work port connections, this Prince Hydraulics control valve delivers reliable directional control for heavy equipment, industrial machinery, and hydraulic system applications. Built to ISO 4406-19/17/14 standards and made in the USA, this Prince 6W565 spool valve is a dependable choice for your hydraulic system.
- Brand: Prince (Prince Hydraulics)
- Part Number: 6W565 / Manufacturer Part Number RD2575T4EDA1
- Series: RD2500
- Valve Type: 4-Way, 3-Position Directional Control / Spool Valve, Check
- Center Position: Tandem Center
- Number of Spools: 1, Detent Spool Action
- Actuation: Manual, Lever Operated / Directional Control
- Maximum Flow Rate: 12 GPM
- Maximum Pressure Setting: 3,000 PSI (Minimum 1,000 PSI)
- Maximum Supply Pressure: 3,000 PSI
- Relief Valve Pressure Setting: 1,000 to 1,500 PSI
- Port Connections: Inlet, Outlet, Work (NPT)
- Pressure Connection Size: 3/4 in NPT
- Work Connection Size: 1/2 in NPT
- Body Material: Cast Iron
- Maximum Operating Temperature: 180 °F
- Dimensions: 12 in L x 4.25 in W x 8.25 in H
- Standards: ISO 4406-19/17/14
- UNSPSC: 40141608
- Country of Origin: USA
