Item Description:
Briggs & Stratton Vanguard Single Cylinder OHV Engine Repair Shop Service Manual

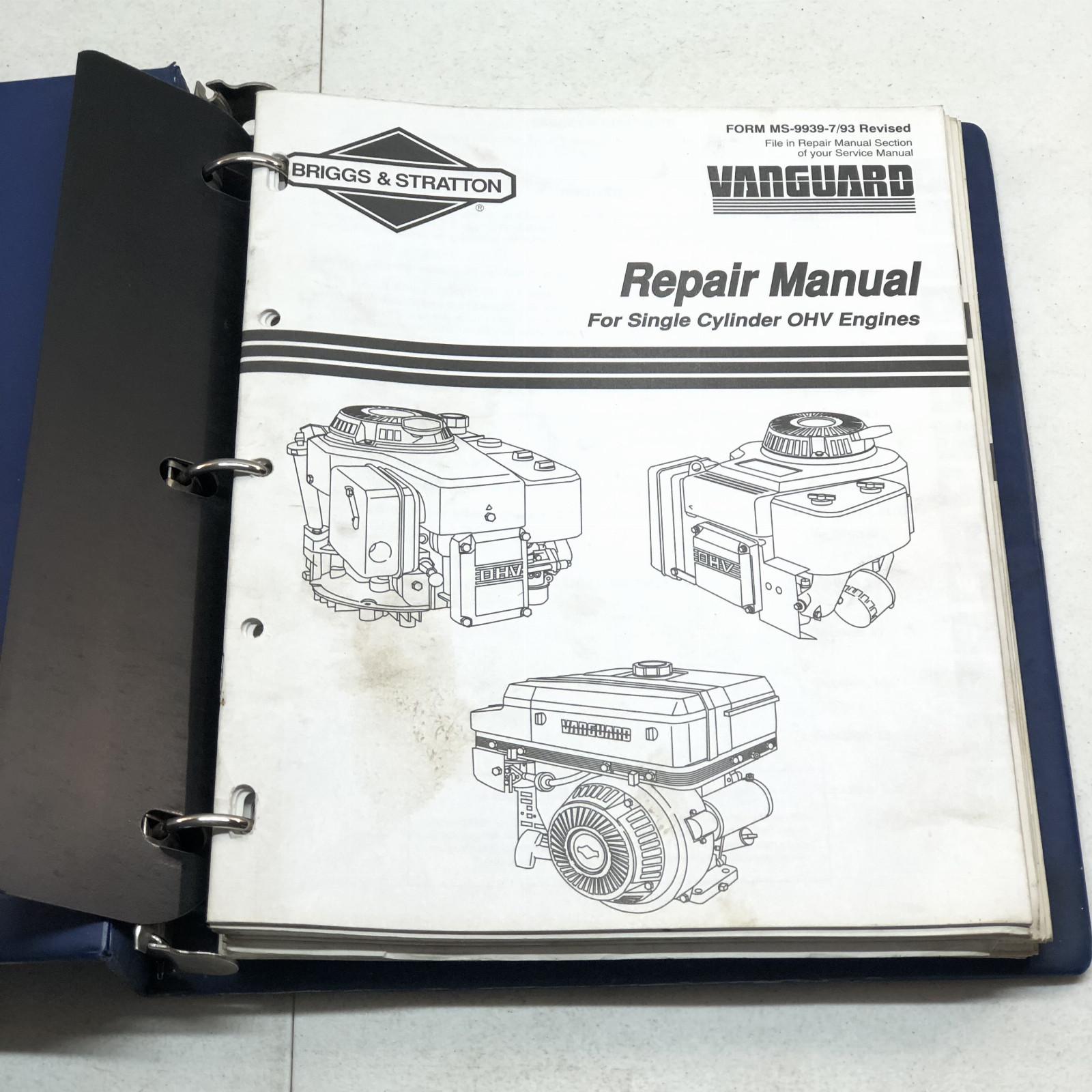

This listing features a genuine Briggs & Stratton Vanguard Single Cylinder OHV Engine Repair Manual, publication number MS-9939-7/93, originally published July 1993 with later revisions up to May 1996. This comprehensive shop manual is an invaluable resource for mechanics, technicians, and owners performing maintenance, repairs, or troubleshooting on Briggs & Stratton Vanguard single cylinder OHV engines. The manual is housed in a blue 3-ring binder. The cover shows wear, discoloration, and some smudges, particularly along the edges and bottom. The internal pages appear generally clean with some minor handling marks, but no significant tears or missing pages are visible.
Sections included in this manual:
* **Section 1: GENERAL INFORMATION** - Provides foundational details for engine service.
* **Section 2: IGNITION** - Covers armatures, blower housings, flywheels, spark plugs, and stop switches.
* **Section 3: CARBURETION** - Details Briggs & Stratton/Mikuni and Walbro carburetors, including identification, adjustment, disassembly, and operation.
* **Section 4: GOV. CONTROLS, CARB. LINKAGE & FLYWHEEL BRAKES** - Addresses flywheel brakes, governor controls, and carburetor linkages.
* **Section 5: GOVERNORS** - Explains mechanical governors, their adjustment, disassembly, and RPM limits.
* **Section 6: COMPRESSION** - Guides on compression testing, cylinder heads, push rods, valves, valve guides, valve seats, and valve springs.
* **Section 7A: REWIND STARTERS** - Covers identification, assembly, inspection, and removal of both plastic and metal pawl rewind starters.
* **Section 7B: ELECTRIC STARTERS** - Details flywheel service, 12-volt batteries, test equipment, System 3 & 4, and gear drive starter motors.
* **Section 8: LUBRICATION** - Covers engine lubrication systems and procedures.
* **Section 9: PISTONS, RINGS, RODS** - Details service for pistons, piston rings, and connecting rods.
* **Section 10: CRANKSHAFTS, CAM GEARS & GEAR REDUCTIONS** - Addresses crankshafts, cam gears, and gear reduction systems.
* **Section 11: CYLINDERS & BEARINGS** - Guides on cylinder and bearing service.
* **Section 12: SYNCHRO-BALANCE™** - Explains the Synchro-Balance system.
* **Section 13: MUFFLERS** - Covers muffler inspection and service.
* **Section 14: TOOLS** - Lists special tools required for service.
